Area Gripping Systems and End Effectors

Hệ thống kẹp khu vực và các bộ phận xử lý cuối SCHMALZ là các hệ thống thu giữ có thể gắn trực tiếp trên robot. Thiết bị kẹp khu vực SCHMALZ bao quát và được sử dụng trong một phạm vi rộng lớn của các ứng dụng robot. Bộ phận hút chân không dễ dàng được cấu hình từ hệ thống mô đun. SCHMALZ đặc  biệt phù hợp với các quy trình trong ngành bao bì.

NEW

Lightweight Gripping Systems SLG

• Max. lift capacity 10 kg
• Dimensions max.: 350 x 350 x 350 mm
• External or integrated vacuum generation

Vacuum Area Gripping Systems FXCB/FMCB

• Area gripper for integrated or external vacuum generator
• Suitable for operation with collaborative robots
• Sealing element: sealing foam

Vacuum Area Gripping Systems FXP/FMP

• Universal gripper for automated palletizing / de-palletizing, commissioning and sorting
• Dimensions: 442 x 130 to 1,432 x 130 mm
• Sealing element: sealing foam, suction cup

Vacuum Area Gripping Systems FX/FM

• Compact and light gripper for applications such as packaging machines
• Dimensions: 76 x 22 to 120 x 60 mm
• Sealing element: sealing foam, suction cup

Sealing Foams for Area Gripping Systems

Replacement sealing foams from Schmalz for gripping systems from other manufacturers.

Vacuum Area Gripping Systems FMHD

• Connection for external vacuum generation
• Sealing element: Sealing foam

PHASE-OUT ARTICLE

Vacuum Area Gripping Systems SBX-C

• Strong and robust gripper for the woodworking industry
• Dimensions: 1,040 x 200 to 1,250 x 400 mm
• Sealing element: Sealing foam

Vacuum End Effectors VEE

• Modular system for simple design of vacuum end effectors
• Grippers that can be configured online
• Handling of workpieces in packaging processes

Area Gripping Systems FXP

• Universal gripper with integrated, pneumatic vacuum generation, for handling workpieces regardless of size, geometry, material and surface
• Handling of workpieces made from various materials, such as wood (coated or unplaned), packaging (boxes, bags or cans), metal sheets, glass, plastics, CFRP, etc.
• Handling of porous workpieces, workpieces with gaps or undefined pick-up position
• Mark-free handling of sensitive workpieces such as display glass
• Ideal for use on robots due to its low weight

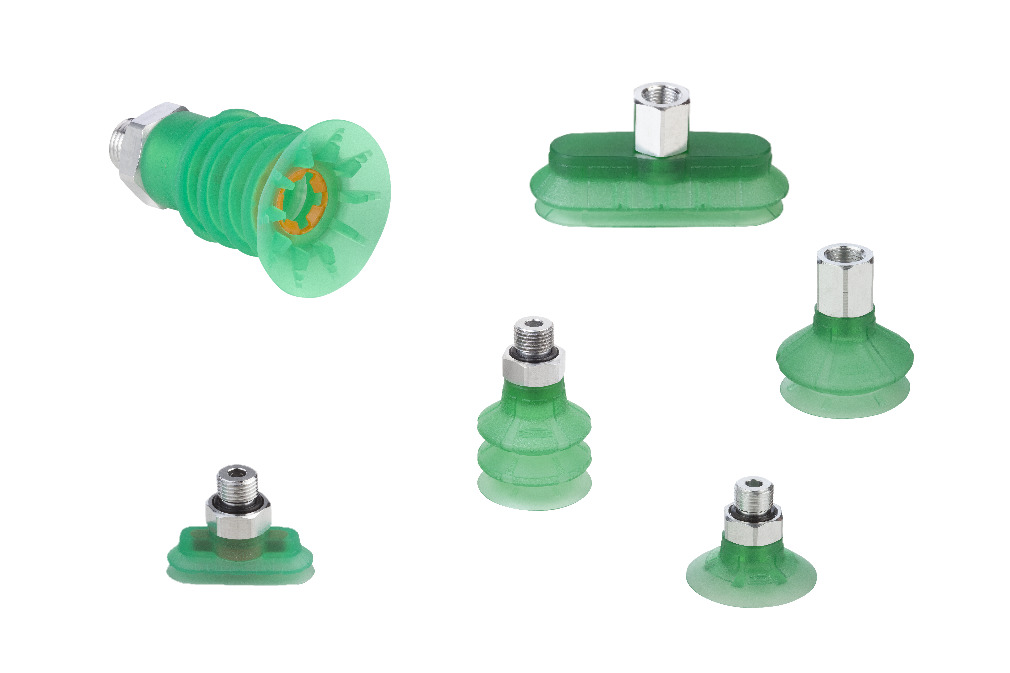

Suction Cups for Vacuum End Effectors

• Round flat suction grippers or bellows suction cups with up to 4.5 folds for handling bags and other highly flexible packages as well as cardboard boxes and other rigid packages
• For use in quick packaging processes or in processes with stringent requirements on the suction cups’ sealing and wear properties
