TÍCH HỢP HỆ THỐNG – Mounting Elements

Mounting Elements

SCHMALZ cung cấp hàng loạt các ứng dụng gắn kết cho việc tích hợp tấm lót hút hoặcthiết bị kẹp đặc biệt SCHMALZ vào hệ thống chân không.

Spring plunger

Holder for Suction Cups and Spring Plungers

Jointed Mountings

Multi-directional jointed mountings for adjusting the suction cups to uneven surfaces

Schmalz Tooling System SXT

NEW

Robot flange and quick-change bayonet for a flexible and high-strength connection
Pipes and extensions with angle adjustment for a modular system
Clamping units, connections and elbow connections for a precise and configurable layout

Holder system for tooling HT

Holders for mounting various Schmalz vacuum components on tooling beams
For vacuum suction cups, optionally with integrated vacuum nozzles or decentralized vacuum generators
For spring plungers or cylindrical sensors

Suspension, rigid/flexible - Set

Spring plunger-combination of “fixed and floating bearings” for jam free compensation of height tolerances at suspension of gripping systems.

Suspension, fixable FST-C

Sections and Connectors

Mounting Sections MO-PROF

Mounting section for flexible construction of tailor made load cross-beams
Used as load cross beam and vacuum distributor
Three chamber section permits distribution of different vacuum and compressed air pressures

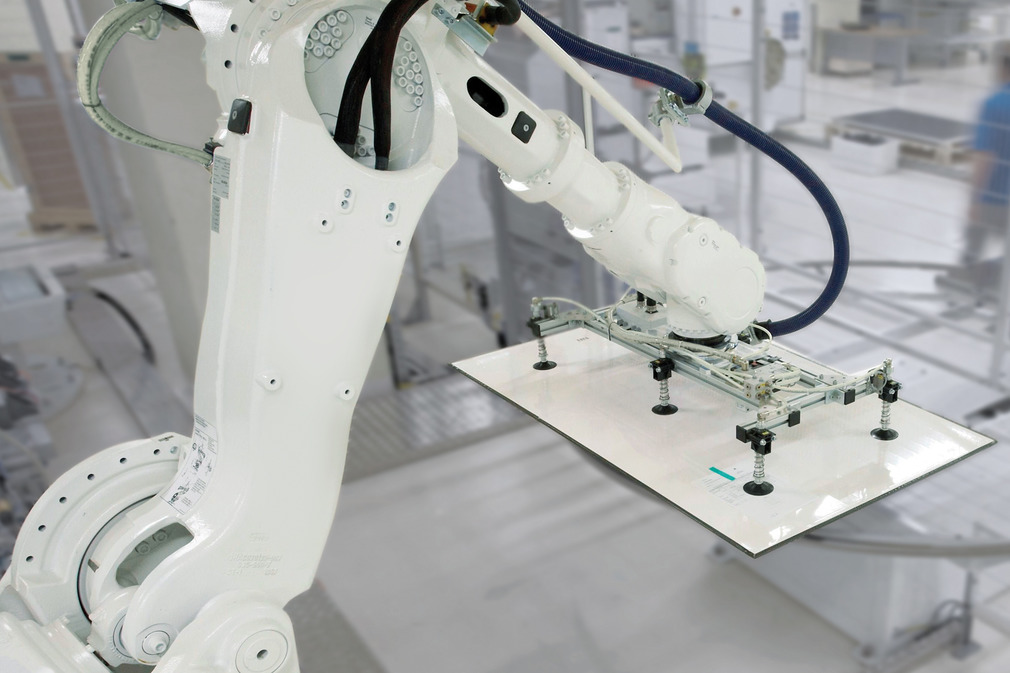

assets/Anwendungsbild/A_PGE-00051_000.jpg

Spring plunger with integrated mounting facilities for handling of workpieces with differing heights
Handling of sheets and planks of wood in the furniture, chipboard, door and flooring industries
Handling tasks in dusty surroundings

assets/Anwendungsbild/A_PGE-00129_003.jpg
