Solenoid valves for dedicated fluids

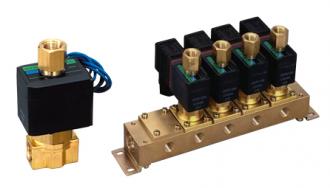

Direct acting 2, 3-port solenoid valve for water (special purpose valve)
- Model No.
- FWB・FWG・GFWB・GFWG
Direct acting solenoid valve for water. Using highly corrosion-resistant material, it is highly durable, lightweight, co…
- Industry
-
- Sterilizing equipment
- Endoscope related device
- Dental equipment
- Physicochemical analysis equipment
Click here for details
Add to Favourites
- Documents / Download
- Digital Catalog
PDF Catalog
User’s Manual
2D CAD
CKD plus Members Only
Solenoid valves for dedicated fluids
Compact pilot operated solenoid valve for water
- Model No.
- FWD
Compact pilot operated solenoid valve for water. It is lightweight, compact and consumes low power, which contributes to…
- Industry
-
- Physicochemical analysis equipment
- Cooling water
Click here for details
Add to Favourites
- Documents / Download
- Digital Catalog
PDF Catalog
User’s Manual
3D CAD
CKD plus Members Only
Solenoid valves for dedicated fluids
Pilot operated 2-port solenoid valve for compressed air
- Model No.
- EXA・GEXA
Compact pilot operated solenoid valve for compressed air control. Ideal for air blowing applications and contributes to …
- Industry
-
- Dental equipment
- Inspection
- Jig related
Click here for details
Add to Favourites
- Documents / Download
- Digital Catalog
PDF Catalog
User’s Manual
2D CAD
3D CAD
CKD plus Members Only
Solenoid valves for dedicated fluids
Direct acting 2, 3-port solenoid valve for compressed air (Special purpose valve)
- Model No.
- FAB・GFAB・FAG・GFAG
Direct acting solenoid valve for compressed air. With an aluminum body, it is lightweight, compact and consumes low powe…
- Industry
-
- Dental equipment
Click here for details
Add to Favourites
- Documents / Download
- Digital Catalog
PDF Catalog
User’s Manual
2D CAD
CKD plus Members Only
Solenoid valves for dedicated fluids
Direct acting 2-port solenoid valve for hot water (special purpose valve)
- Model No.
- FHB
Direct acting solenoid valve for hot water. Heat resistant coils are used, allowing use in hot water up to 90°C.
- Industry
Click here for details
Add to Favourites
- Documents / Download
- Digital Catalog
PDF Catalog
User’s Manual
2D CAD
Model No. Product name Size Orifice (mm) Port size Remarks FWB21 2-port/NC 22 mm width φ1, 2 Rc1/8 FWB31 2-port/NC 28 mm width φ3, 4, 5 Rc1/8, 1/4 FWB41 2-port/NC 34 mm width φ4, 5, 7, 10 Rc1/4, 3/8, 1/2 FWB51 2-port/NC 40 mm width φ4, 5, 7, 10 Rc1/4, 3/8, 1/2 FWB32 2-port/NO 28 mm width φ3, 4, 5 Rc1/8, 1/4 FWB42 2-port/NO 34 mm width Φ4, 5, 7 Rc1/4, 3/8 FWB52 2-port/NO 40 mm width Φ4, 5, 7 Rc1/4, 3/8 GFWB 2-port/manifold – – – FWG21 3-port/universal 22 mm width φ1 Rc1/8 FWG31 3-port/universal 28 mm width φ1.5 Rc1/8, 1/4 FWG41 3-port/universal 34 mm width φ2 Rc1/4, 3/8 FWG51 3-port/universal 40 mm width φ3 Rc1/4, 3/8 GFWG 3-port/manifold – – –
